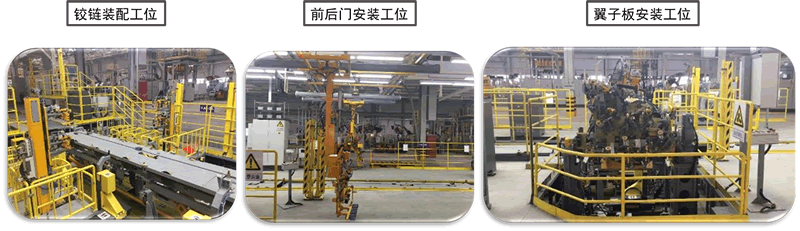

Flexible automotive door cover assembly line

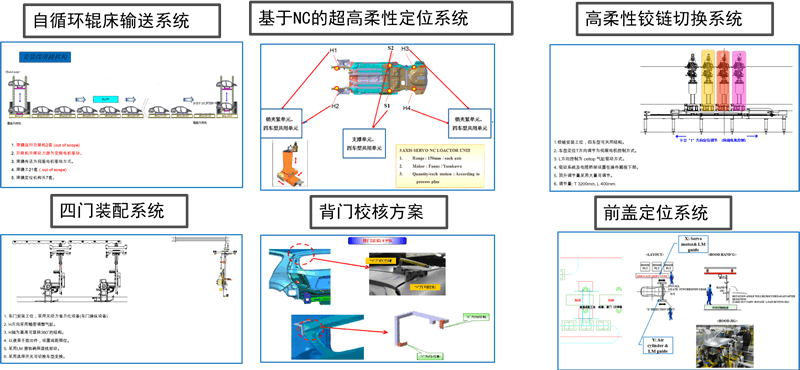

Mentechs adopts high-speed roller beds, high-speed elevators, and NC positioning units to achieve a beat of up to 60 JPH and compatibility with four vehicle models. It uses a more advanced automated fixture system instead of manual fixtures, greatly improving assembly accuracy and stability.
Mentechs is not only a design and manufacturing company that can provide fully automatic assembly and adjustment line design and manufacturing, but also has great advantages in peripheral process equipment such as supporting smoke exhaust and dust removal systems, manual welding machines, manual bolt guns, collapse platforms, fences, and other peripheral supporting facilities, providing customers with a complete set of automatic assembly line products.

  Flexible Main Line Welding System

Features: It can realize a flexible production line with 6 vehicle models switching; using open flexible final assembly and robot flexible final assembly core technologies, through technical transformation, the production beat can be increased to 65 JPH, and the automation rate is as high as 95% or more.

Flexible Floor Welding Line

Flexible cabin welding line

Features: It can realize flexible switching of multiple vehicle models, and use the slide fixture storage library form to meet the automatic switching rate of multiple vehicle models. Other processes also involve robot spot welding, handling, and automatic gluing, etc., which can achieve a production beat of 50 JPH.

Flexible Side Wall Welding System

Features: The side wall line can realize flexible switching of dozens of vehicle models, and use three-dimensional warehouses + conveying roller beds to realize the common line welding of the left/right side wall areas of dozens of vehicle models, which can achieve a production beat of 50 JPH and an automation rate of over 90%.

Flexible Door and Cover Welding System

Features: It can realize flexible switching of 4 vehicle models, and at the same time use core technologies such as presses and fully automatic mold change systems to maximize the automation rate. Other processes also involve robot vision inspection and automatic gluing, etc., which can achieve a production beat of 60 JPH.

Main Line Manual Welding System

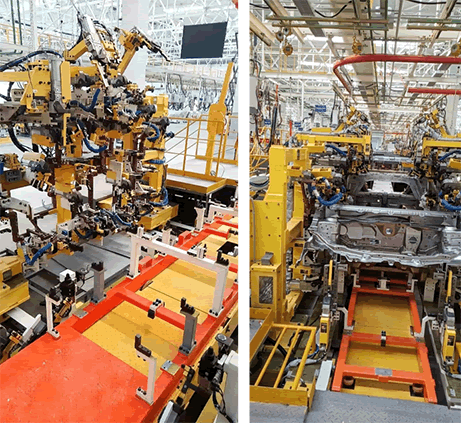

Intelligent Factory for White Body Welding and Assembly (8)
Features: A low-cost final assembly form, manual welding, robot repair welding, and the beat can be optimized to 25 JPH
